Get started with Perturb

A small neural network is trained to take apart a noisy signal into the sine waves it is made of. We already know the right answer (each amplitude lives in its own sine wave), so we can check that Perturb finds what the network is really looking at.

Perturb needs only three things: the black box as a function (inputs in, answers out), the sample you want explained, and its noise. Everything else on this page is four steps:

1. Kernel width: how far apart two points can be and still move together.
2. How far to perturb: how big a nudge the network still handles sensibly.
3. Perturb: nudge every region of the sample up and down, and record how the answer moves.
4. Plot: turn those responses into maps.

import perturb as pt
from perturb import plotting

The problem

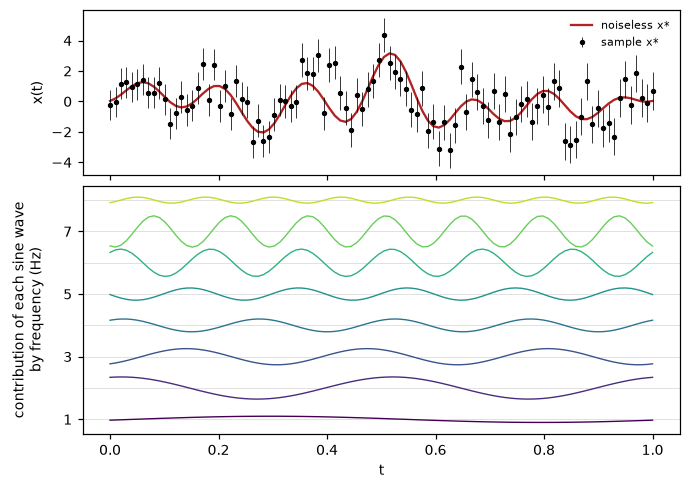

The signal is the sum of 8 sine waves of fixed frequency with unknown amplitudes, plus noise that grows along the signal. Top: the sample we will explain. Bottom: the same signal taken apart into its sine waves.

The black box

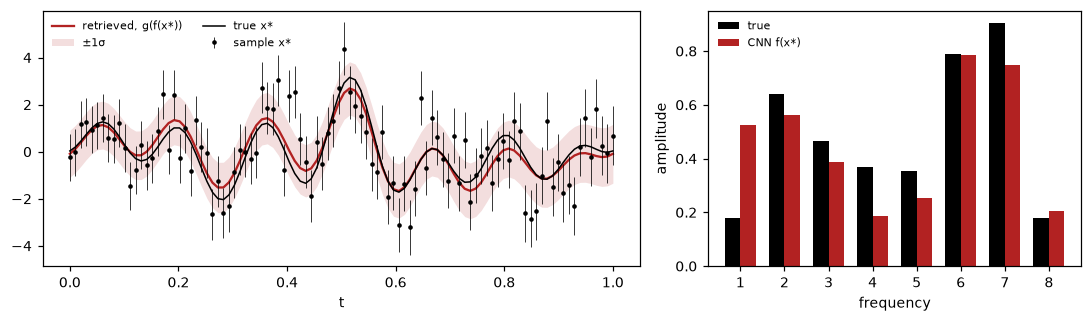

The black box f is a 1D convolutional network trained to read the 8 amplitudes off the signal. To Perturb it is just a function: an array of signals in, an array of amplitudes out. Here it gets most amplitudes about right.

Step 1: the width of the kernel

Perturb never moves a single point on its own, because real signals don’t jump at one point. It moves a smooth neighbourhood, as wide as the distance over which real samples rise and fall together. fit_kernel_width measures that from samples drawn from the prior.

fit = pt.fit_kernel_width(X_prior, T, normalise=False)   # X_prior: noiseless samples, T: the x axis
FWHM = fit["fwhm"]
plotting.kernel_fit(fit)
plotting.correlation_matrix(fit)

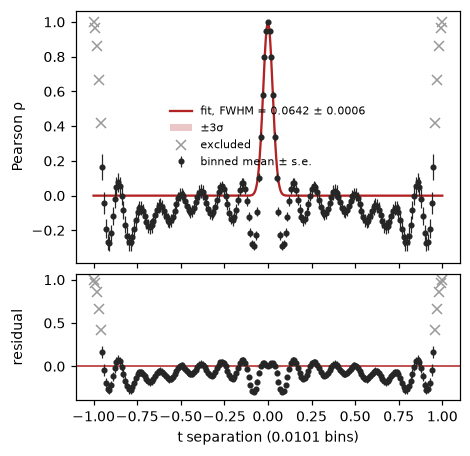

kernel FWHM = 0.0642 ± 0.0006 in t (6.4 points)

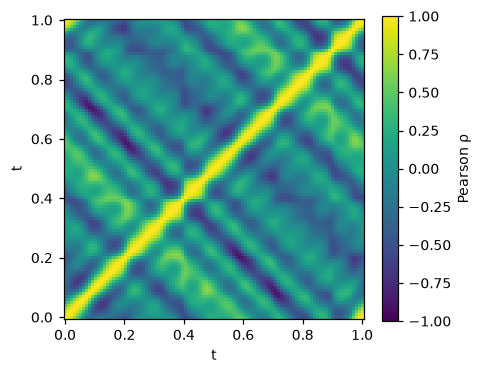

Neighbouring points move together, and stop doing so within about six points. The ripples further out are the sine waves beating against each other.

Step 2: how far to perturb

A nudge only tells us something while the network still treats it as a realistic signal. Push too far and it is answering a question it was never trained on. So first explore a deliberately wide range, then let the network itself say where it stops responding the way it does to a small nudge.

wide = pt.Perturber(f, T, SIGMA, FWHM)(x_star, pt.magnitude_grid(xi_max=10, n=81))
curve = pt.in_distribution_curve(wide, forward, tol=0.1)   # forward: amplitudes back to a signal
plotting.ood_map(curve, wide)

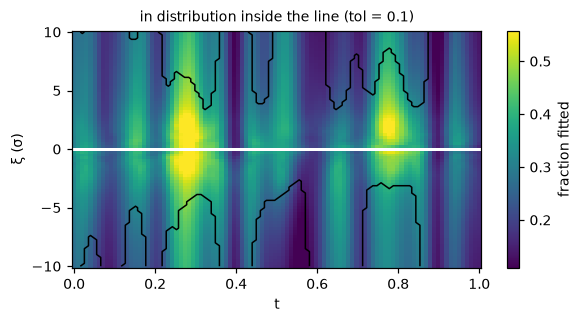

Each column is a nudge centred at one point, each row a size of nudge (in units of the noise, σ). Inside the line the network responds as it does to small nudges.

max_magnitude reads off the largest nudge at which nearly every position is still trusted.

XI_MAX = pt.max_magnitude(curve)
plotting.in_distribution(curve)

in distribution up to |xi| = 3 sigma

Step 3: perturb the sample

Now nudge every position, at 101 sizes within that limit, and record how each amplitude moves.

result = pt.Perturber(f, T, SIGMA, FWHM)(x_star, pt.magnitude_grid(xi_max=XI_MAX, n=101))

response: (100, 101, 8) (centres, magnitudes, outputs);  importance: (100, 8)

Step 4: visualise

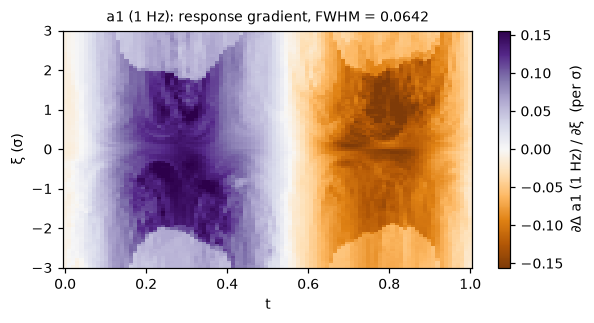

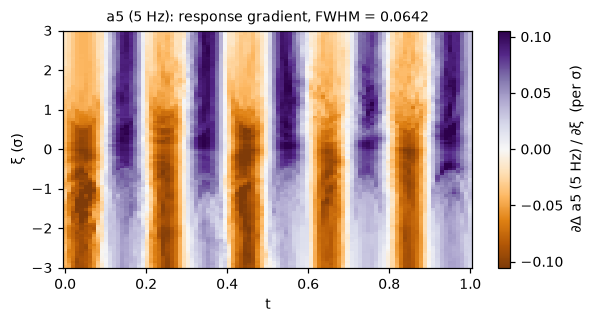

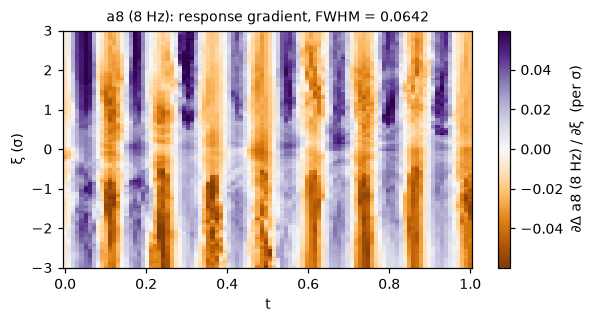

Response-gradient maps. For one amplitude, purple means raising the signal there raises the amplitude, and orange means it lowers it. For the lowest frequency the colours follow its sine wave; higher frequencies show the same pattern, faster.

plotting.gradient_map(result, output=0)

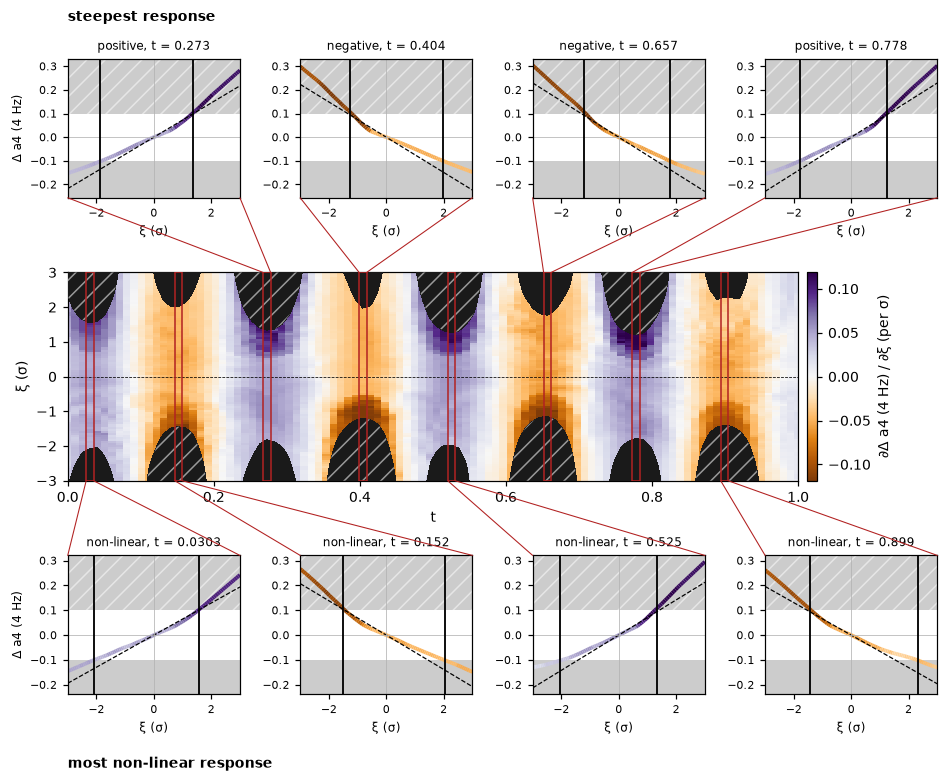

Callouts pick out the most interesting columns automatically: the steepest responses above the map, and the most curved below it. Each is compared with the straight line the importance alone would predict (dashed). threshold greys out any response bigger than a change you care about, so you can read off how far each region has to move before the answer changes by that much.

plotting.callouts(result, output=3, n_positive=2, n_negative=2, n_nonlinear=4, threshold=0.1)

The same curves can be drawn on their own:

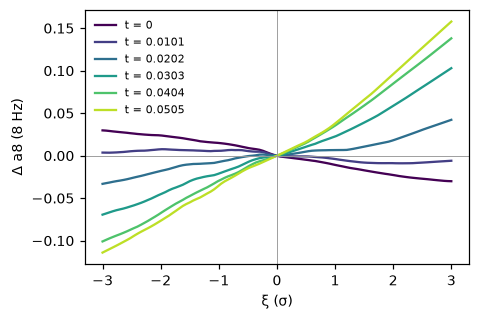

plotting.response_curves(result, output=7, centres=np.arange(6))

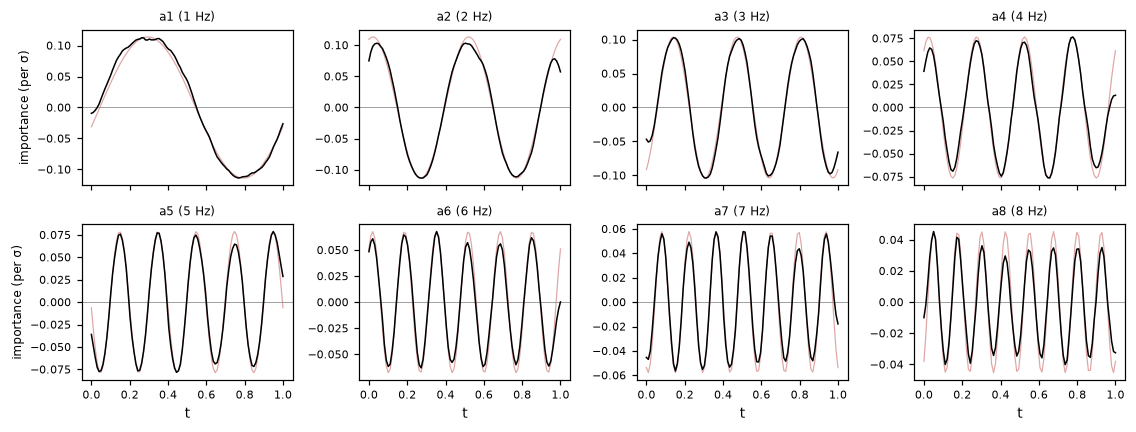

Importance sums each map up into one curve per amplitude. Each comes out as its own sine wave (the faint red line is the true wave, for comparison): the network has learned to read each frequency from where that wave is largest.

plotting.importance(result)

Using it on your own black box

import perturb as pt
from perturb import plotting

fit = pt.fit_kernel_width(X_prior, x_axis)                                          # 1. kernel width
wide = pt.Perturber(f, x_axis, sigma, fit["fwhm"])(x, pt.magnitude_grid(10, 81))    #    explore
xi_max = pt.max_magnitude(pt.in_distribution_curve(wide, forward, tol=0.1))         # 2. how far
result = pt.Perturber(f, x_axis, sigma, fit["fwhm"])(x, pt.magnitude_grid(xi_max))  # 3. perturb
plotting.gradient_map(result, output=0); plotting.importance(result)                # 4. plot

f can be anything that maps an array of inputs to an array of outputs: a network, a retrieval, or a wrapper around external code. If it is random (Monte Carlo dropout, say), fix its randomness between calls, or the maps fill with noise.
